Boasting some impressive features, the ZJ Longarm Kit is a comprehensive package including everything needed for a great suspension lift while maintaining the vehicle's crucial center of gravity.

The kit includes adjustable high-clearance X-Flex upper and lower control arms with Clevite bushings, featuring X-Flex joints. This lift kit features high-clearance components with a front y-link and rear 4-link control arm design. This promotes extreme axle flex while keeping pinion angles optimized.

Features:

• Aggressive appearance
• Increased ground clearance
• HD 0.25 inch thick crossmember
• Lower control arms feature high clearance design
• Front adjustable track bar is made of forged solid steel for unsurpassed strength and durability
• Extreme travel long arms keep optimum alignment and give optimum articulation
• X-Flex control arm features:
  • Clevite brand OEM style rubber bushings
  • Flex joints feature a massive 2.5 Inch diameter body and 1.25 inch thread
  • Fully greasable
  • Upper joints pivot up to 20 degrees
  • Lower joints pivot up to 35 degrees

Notes:

• Does Not fit AWD models.
• Transfer case skid plate Will Not fit models equipped with 249 transfer case.
• Exhaust will have to be cut and rerouted to make sure it is away from the moving components.
• Models equipped with a CV style front driveshaft may result in driveshaft vibration.
• If this occurs, replacing the driveshaft, axle yoke and, or transfer case yoke will need to be performed to rid the vehicle of driveline vibration.
• CV Driveshaft Example

Details:

• Sold As Kit
• Material Forged Steel
• Drive 4WD
• Lift Height 4.0 inch
• Mount Style Bolt On
• Thickness 0.25 inch

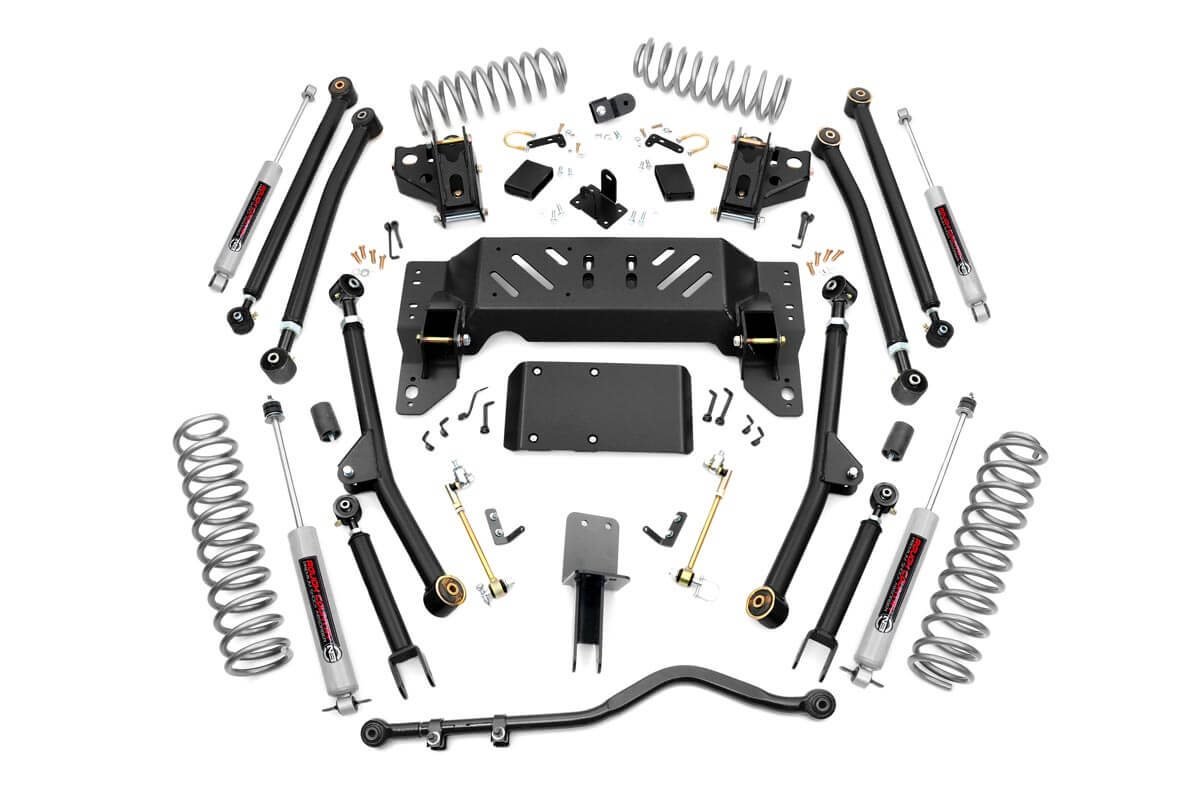

• Front Components Lifted coil springs Adjustable upper control arms Adjustable lower control arms Crossmember Transfer case skid plate Sway-bar quick disconnects Forged Adjustable track bar Track bar bracket 3 Inch Bumpstops Hardware
• Rear Components Lifted coil springs Adjustable upper control arms Adjustable lower control arms Long arm frame brackets Track bar bracket Bumpstop brackets Brake line brackets Hardware
