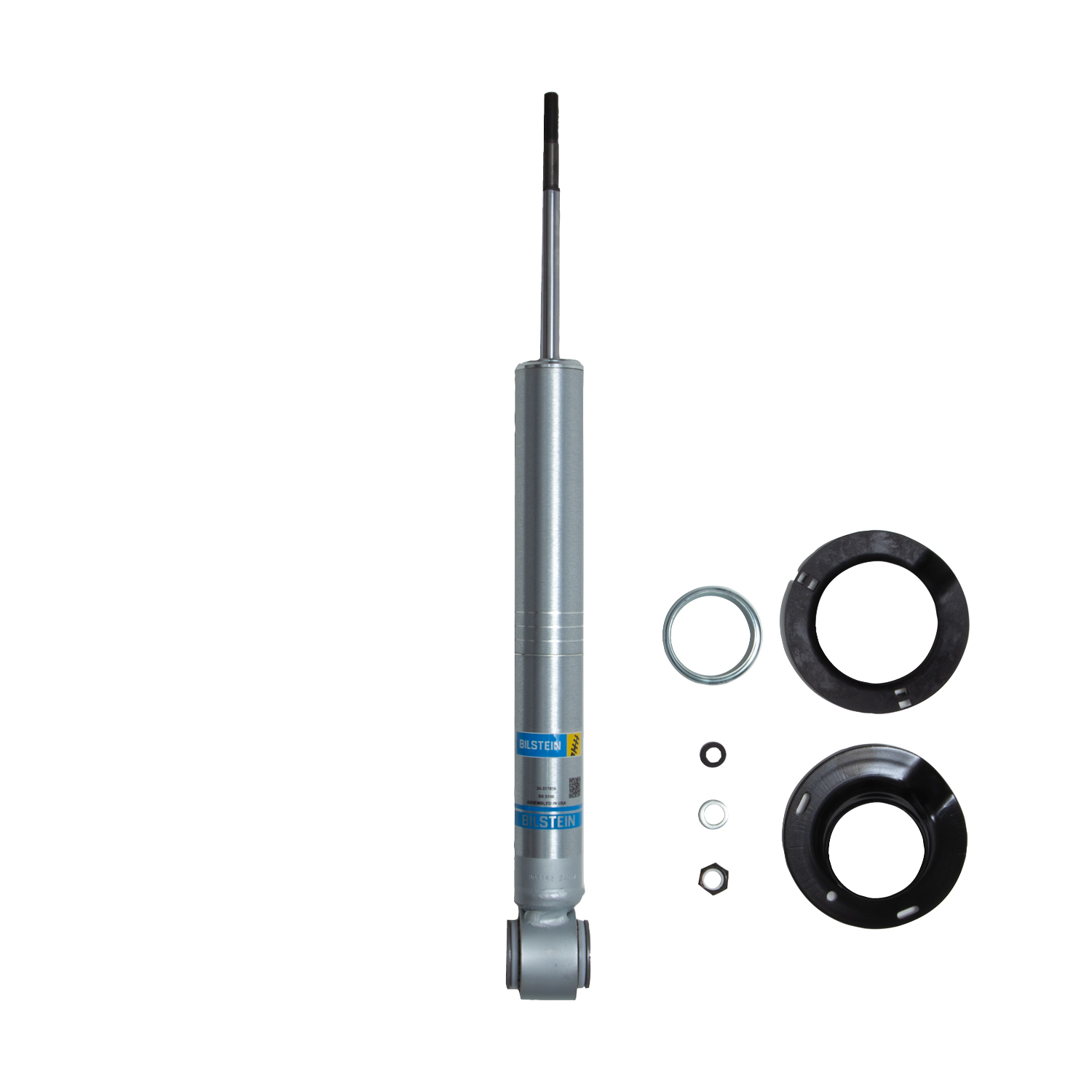

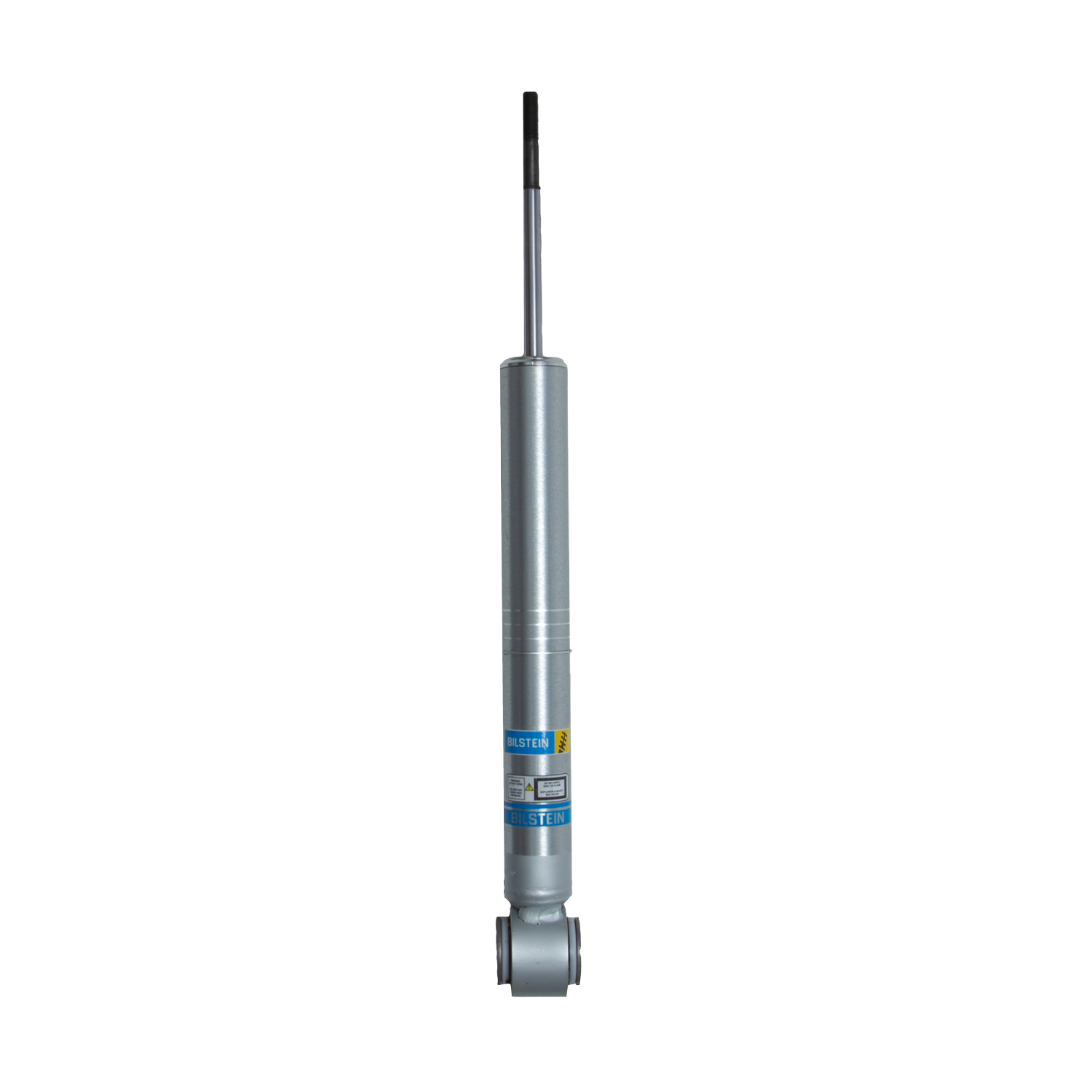

Bilstein B8 5100 (Ride Height Adjustable) shock absorbers are designed for trucks and SUVs with a Front OE coilover style suspension. Multiple snap-ring grooves in the body allow for different spring seat positions, providing 0-3 inches of Front lift with OE springs (depending on application).

• The monotube shock absorbers feature a 46mm Digressive piston a with self-adjusting deflective disc valve setting.
• Bilstein B8 5100 (Ride Height Adjustable) shock absorbers provide increased wheel travel and improved handling.

Utilizing a B8 5100 (Ride Height Adjustable) shock absorber is the easiest way to level out your vehicle.

Details:

• Series: B8 5100 (Ride Height Adjustable)
• Internal Design:Monotube
• Lift Height: 0-2.25 Inch
• Lower Mount Type: Eye 20.3mm
• Upper Mount Type: Stem
• Finish: Zinc Plated
• Adjustable: Non-Adjustable
• Body Design: Snap Ring Grooved Body (Coilover)
• Collapsed Length Inch: 16.93
• Extended Length Inch: 21.86
• Boot Included:No
• Pistion Diameter: 46mm
• Postion: Front
• Reservior: No
• Shaft Diameter: 14mm
• Stroke Travel Length In: 4.93
• Stroke Travel Length In: 125.2
• Notes: 4WD Front Lift Height 0-2. 25 Inch
• Applications: Ford F-150 2013-2009
• Warranty: Limited Lifetime Warranty
