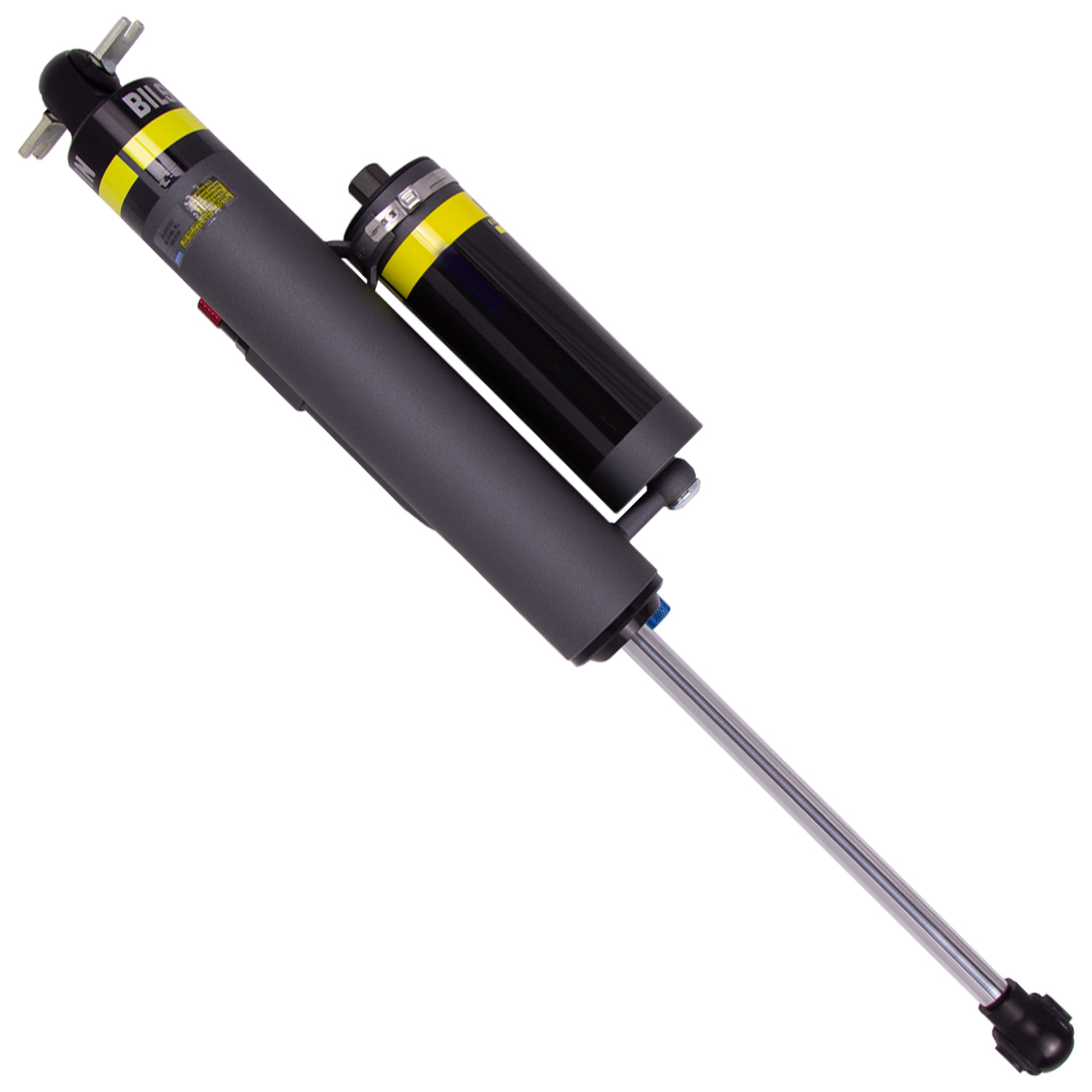

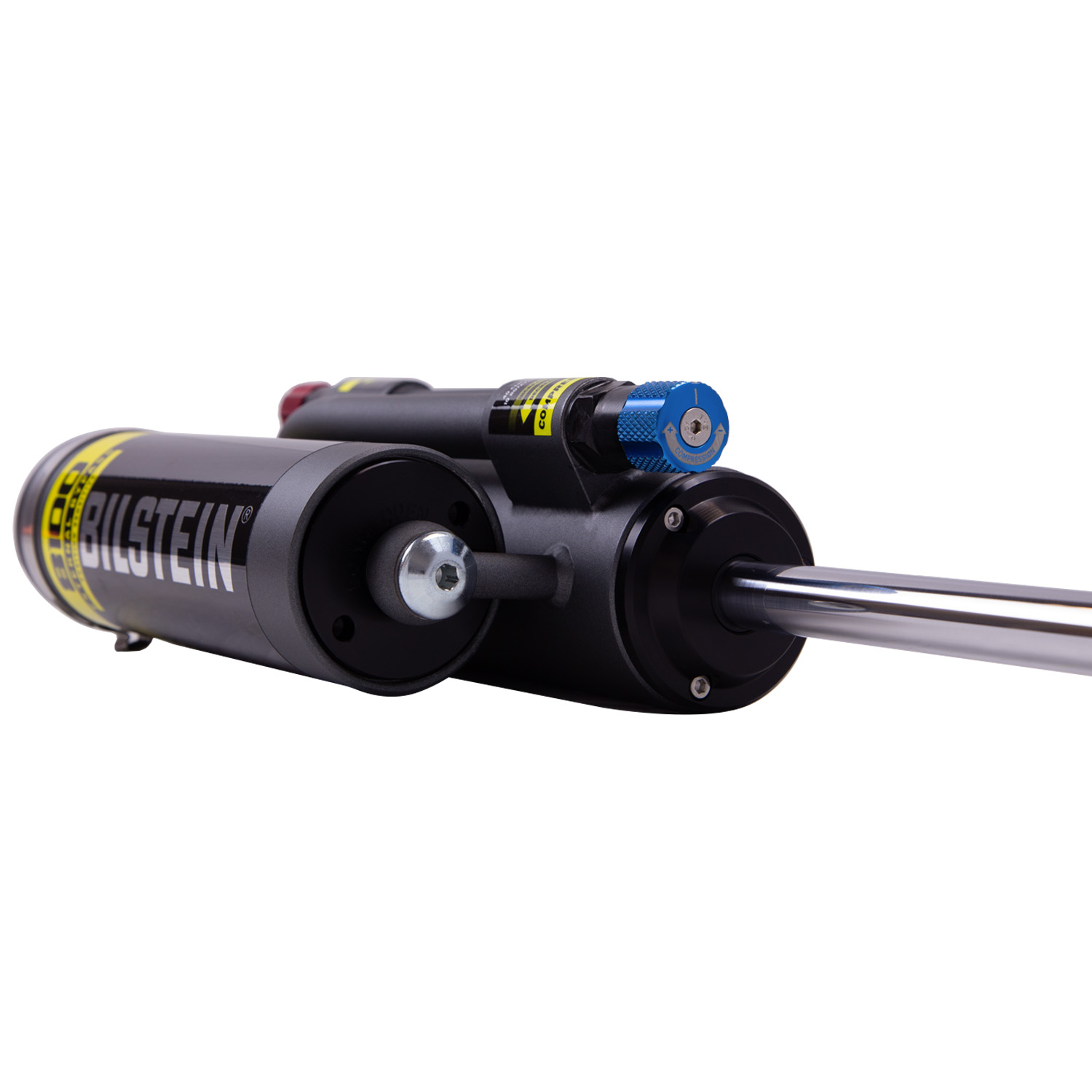

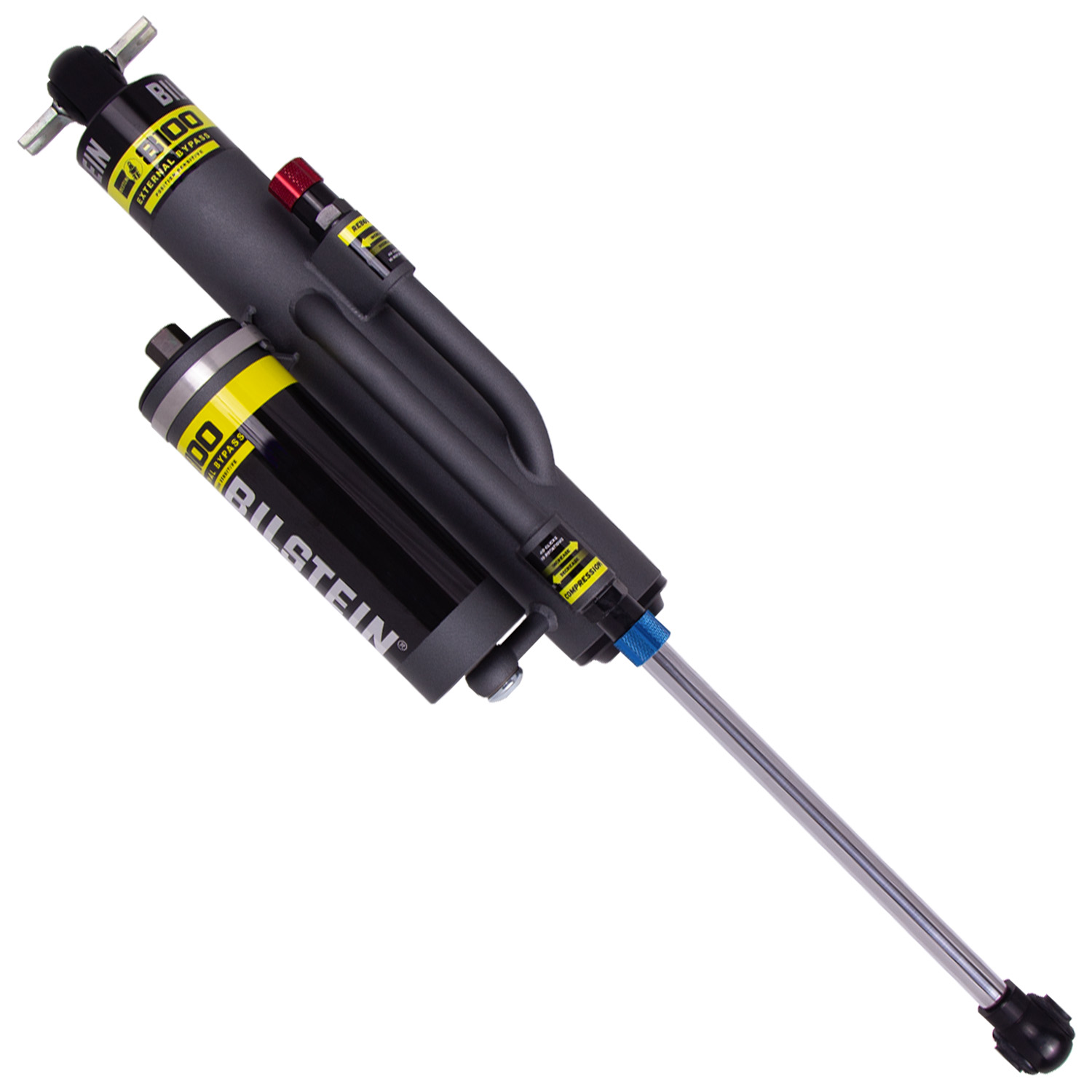

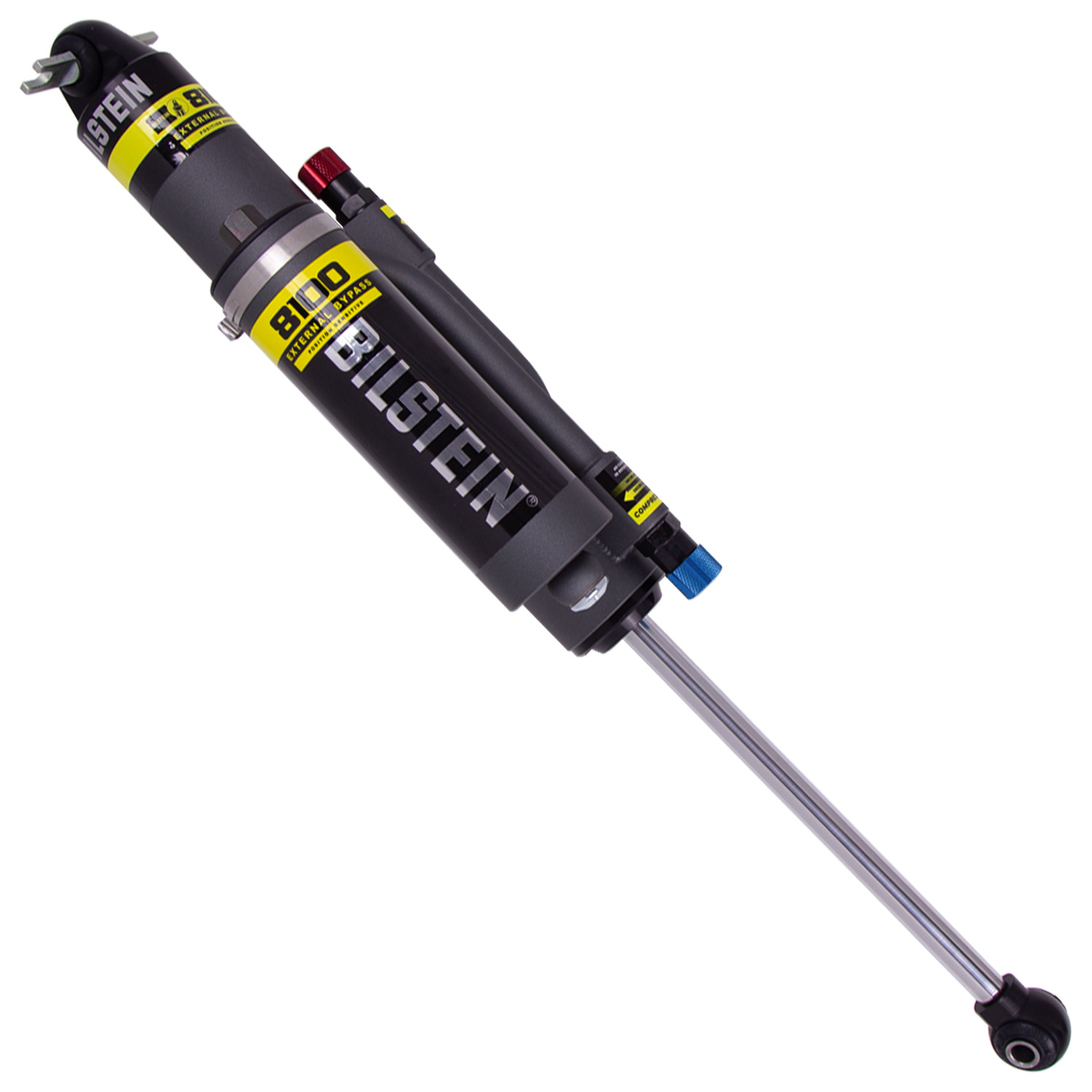

Bilstein B8 8100 (Bypass) is a direct fit, position sensitive, damper for light trucks and SUV's. These motorsports inspired shock absorbers utilize a dual tube externally adjustable bypass design.

B8 8100 (Bypass) feature Incremental Flow bypass adjusters, allowing for finite and incremental changes for rebound and compression. The shocks utilize a bottom hose, remote reservoir exit port, delivering increased compression control during the full cycle.

The remote reservoir is supplied with a bolt-on aluminum anodized chassis mount for an easy fitment. BILSTEIN B8 8100 (Bypass) will maximize the driver experience, offering unparalleled ride comfort and incredible bottom out control.

Details:

• Series: B8 8100 (Bypass)
• Internal Design:Monotube
• Lift Height: 3.5-5 Inch
• Lower Mount Type: Eye 12.1mm
• Upper Mount Type: Bar Pin
• Finish: EVO Grey
• Adjustable: Double Adjustable Compression and Rebound with Click Adjuster Knobs
• Body Design: Bypass Body (Non-Coilover)
• Collapsed Length Inch: 17.17
• Extended Length Inch: 27.83
• Boot Included:No
• Pistion Diameter: 60mm
• Postion: Rear Left
• Reservior: Yes
• Shaft Diameter: 18mm
• Notes: For Rear Lifted Height 3. 5-5 Inch
• Applications: Jeep Wrangler 2017-2007, Wrangler JK 2018
• Warranty: Limited Lifetime Warranty
