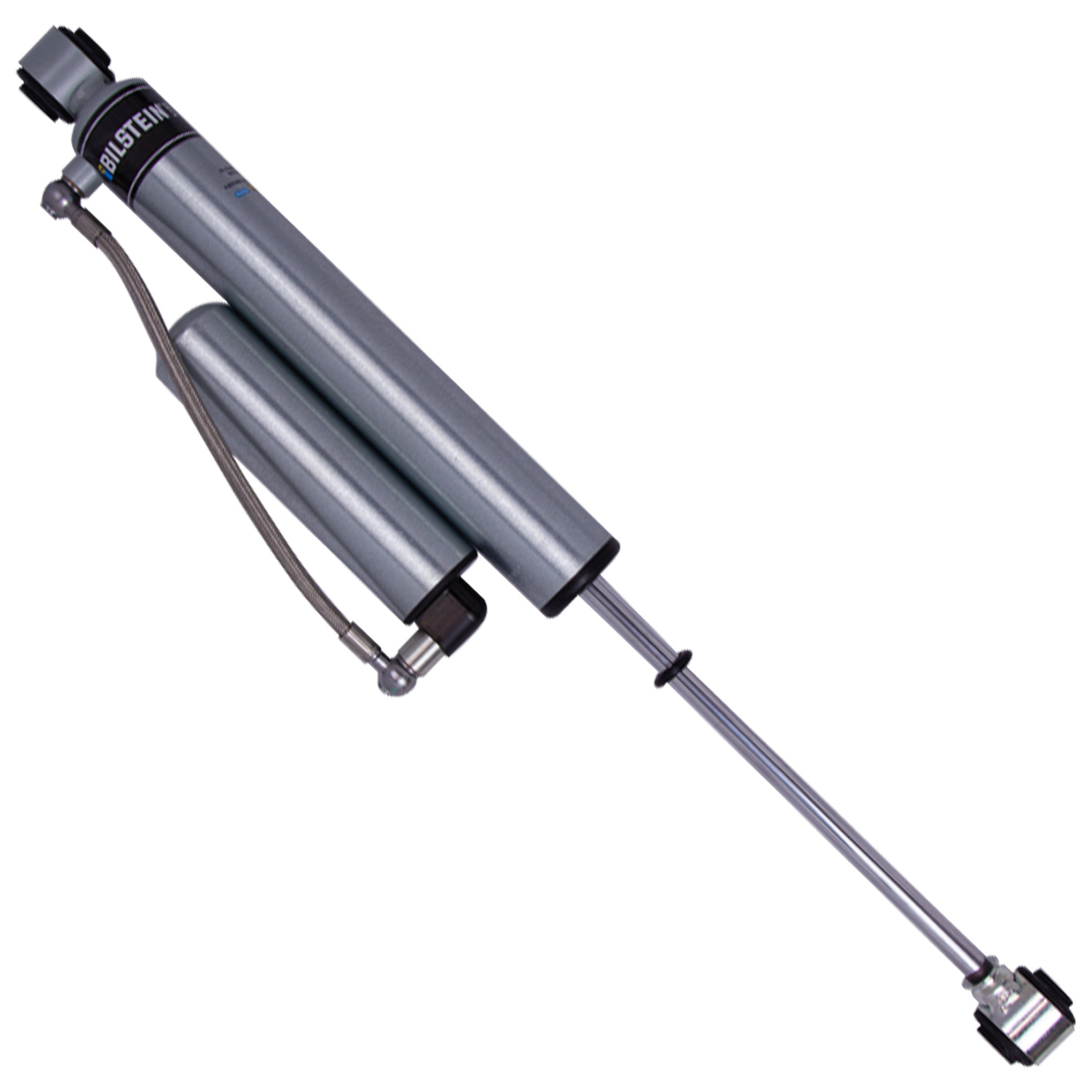

Bilstein B8 5160 remote reservoir shock absorbers are designed as a direct fit solution for lifted trucks and SUVs. The remote reservoir will offer increased cooling capacity and wheel travel to optimize overall performance compared to a traditional shock absorber.

These shock absorbers feature a monotube design for consistent fade free performance and utilize velocity sensitive Digressive valve settings which are tuned for each specific application.

Each shock absorber is fitted with a unique 360 degree swivel banjo hose fitting and an attractive billet reservoir mount where applicable providing a clean, low profile installation.

B8 5160 remote reservoir shock absorbers will increase overall durability of your vehicle allowing you to conquer the harshest of off-road environments

Details:

• Series: B8 5160
• Internal Design:Monotube
• Lift Height: 0-1 Inch
• Lower Mount Type: Eye 14.1mm
• Upper Mount Type: Eye 14.1mm
• Finish: Zinc Plated
• Adjustable: Non-Adjustable
• Body Design: Smooth Body (Non-Coilover)
• Collapsed Length Inch: 15.51

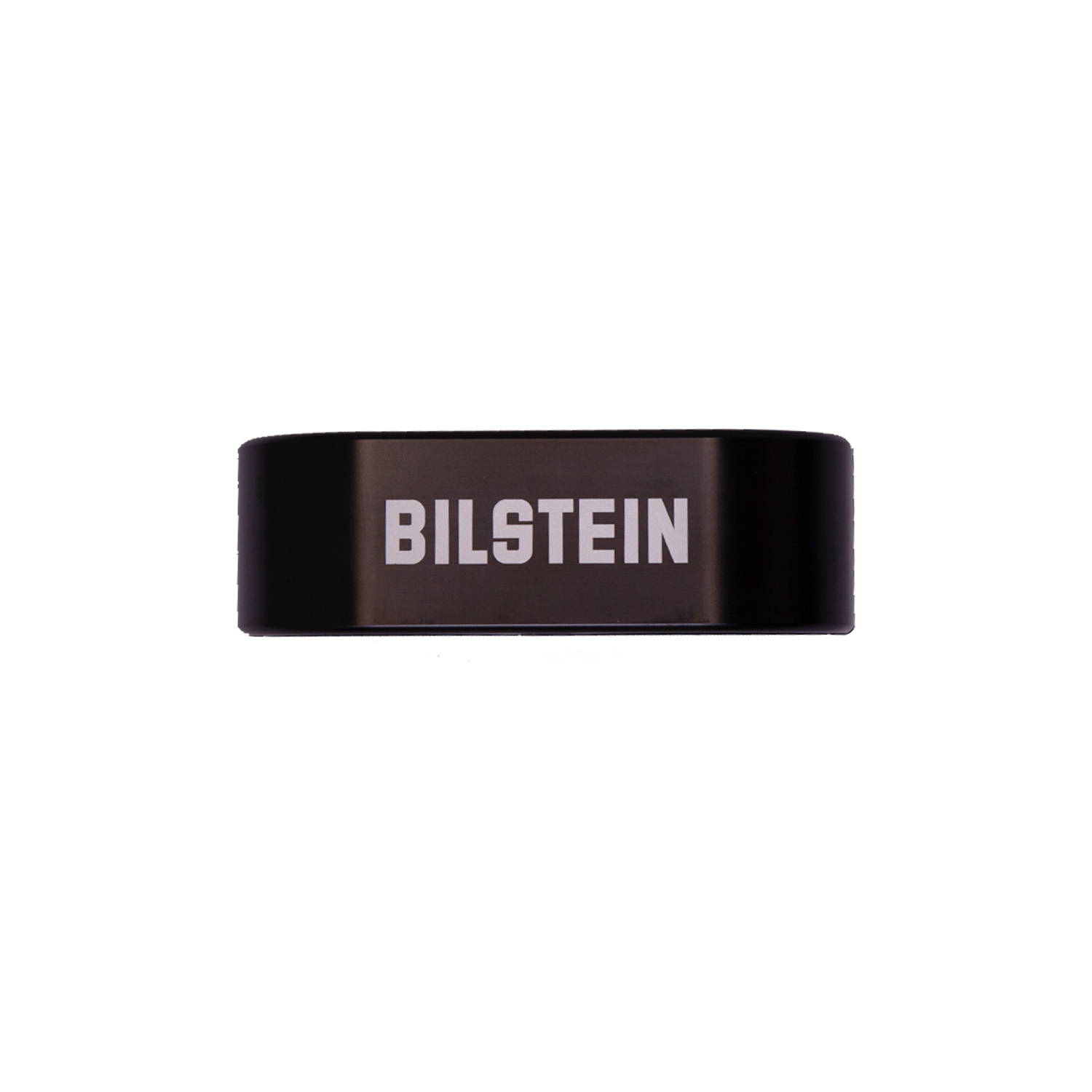

• Billet Reservoir Clamp Included: Yes
• Extended Length Inch: 26.01
• Boot Included:No
• Pistion Diameter: 46mm
• Postion: Rear
• Reservior: Yes
• Shaft Diameter: 14mm
• Stroke Travel Length In: 10.5
• Stroke Travel Length In: 266.7
• Notes: For Rear Lifted Height 0-1 Inch
• Applications: Silverado 1500 19-25, Silverado 1500 LTD 2022, GMC Sierra 1500 19-25, Sierra 1500 Limited 2022
• Warranty: Limited Lifetime Warranty
