THE AEM Water/Methanol Injection System Advantage

• Water/methanol injection for forced induction (turbocharged or supercharged) gas-powered race engines is a proven means for effectively reducing engine inlet air temperatures and suppressing harmful detonation. This allows racers to reliably increase boost and advance ignition timing-without using high-octane racing fuel-for power gains of up to 20 percent. AEM's Water Injection Kits utilize robust hardware and deliver more advanced features than any other comparably priced water/methanol injection system
• Water/Methanol for All Boost Levels of Forced Induction Gas Race Engines
• AEM offers two different water/methanol controller designs for gas vehicles:

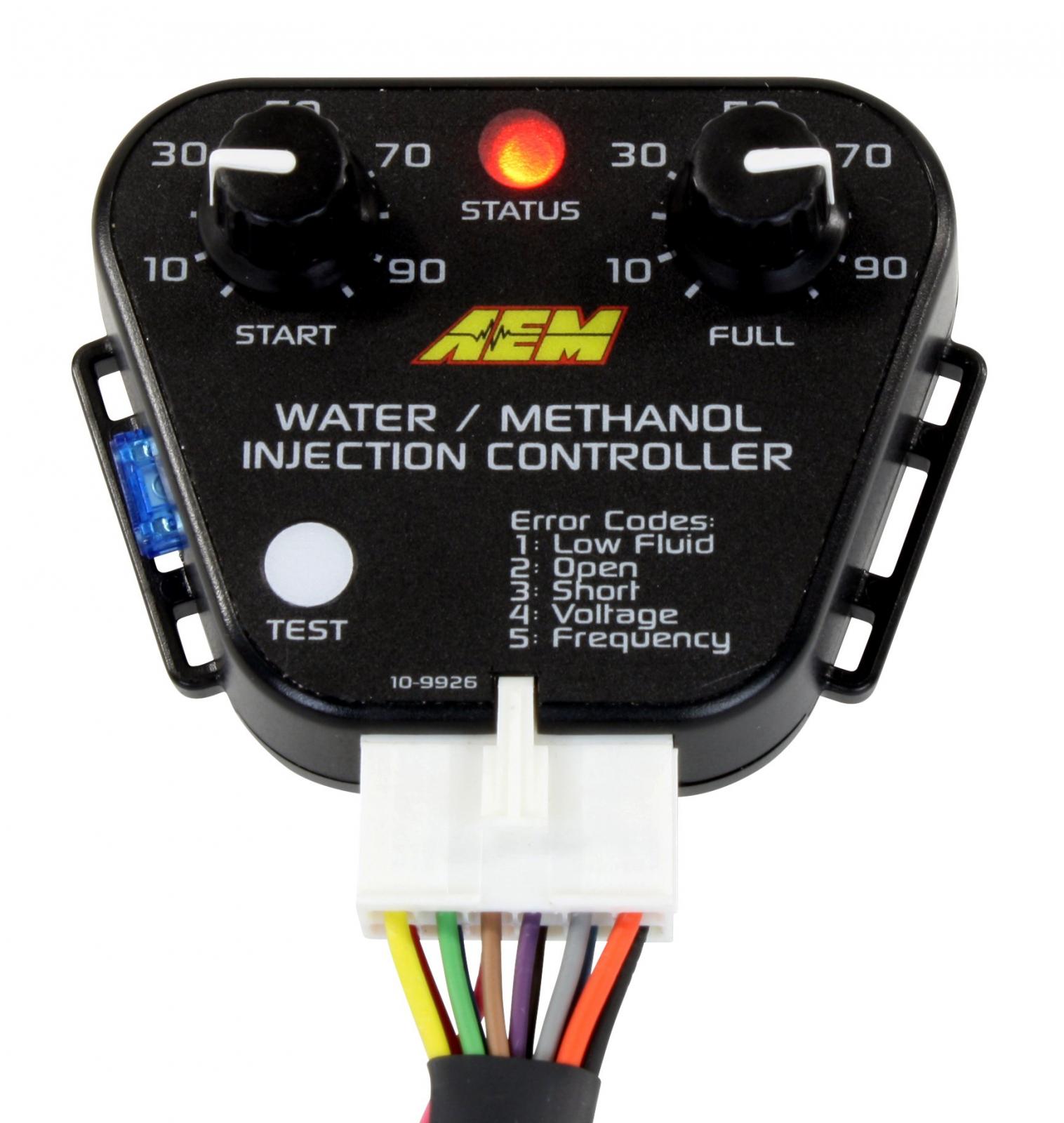

• One is boost dependent for forced induction vehicles up to 35 PSI of boost (kit PN 30-3300). The Boost Dependent controller has an on-board manifold absolute pressure (MAP) sensor with a molded-in nipple for a boost hose pickup
• The second controller (Kit PN 30-3350, Kit PN 30-3351 (5 gallon and two injectors)) features a multiple input design that enables users to install AEM's Water/Methanol Injection Kit on ultra-high boost vehicles (above 35 PSI) using a 0-5v voltage-based external MAP sensor
• Note: FOR Optimum Results, ALL Water/Methanol Injection Systems AND Flow Gauges Should BE RUN With AN WMI Inline Filter (PN 30-3003). For additional insurance against unintended flow, particularly when the pump and tank must be installed higher than the injections nozzle, we recommend adding our optional High-Flow Low-Current WMI Solenoid (PN 30-3326)

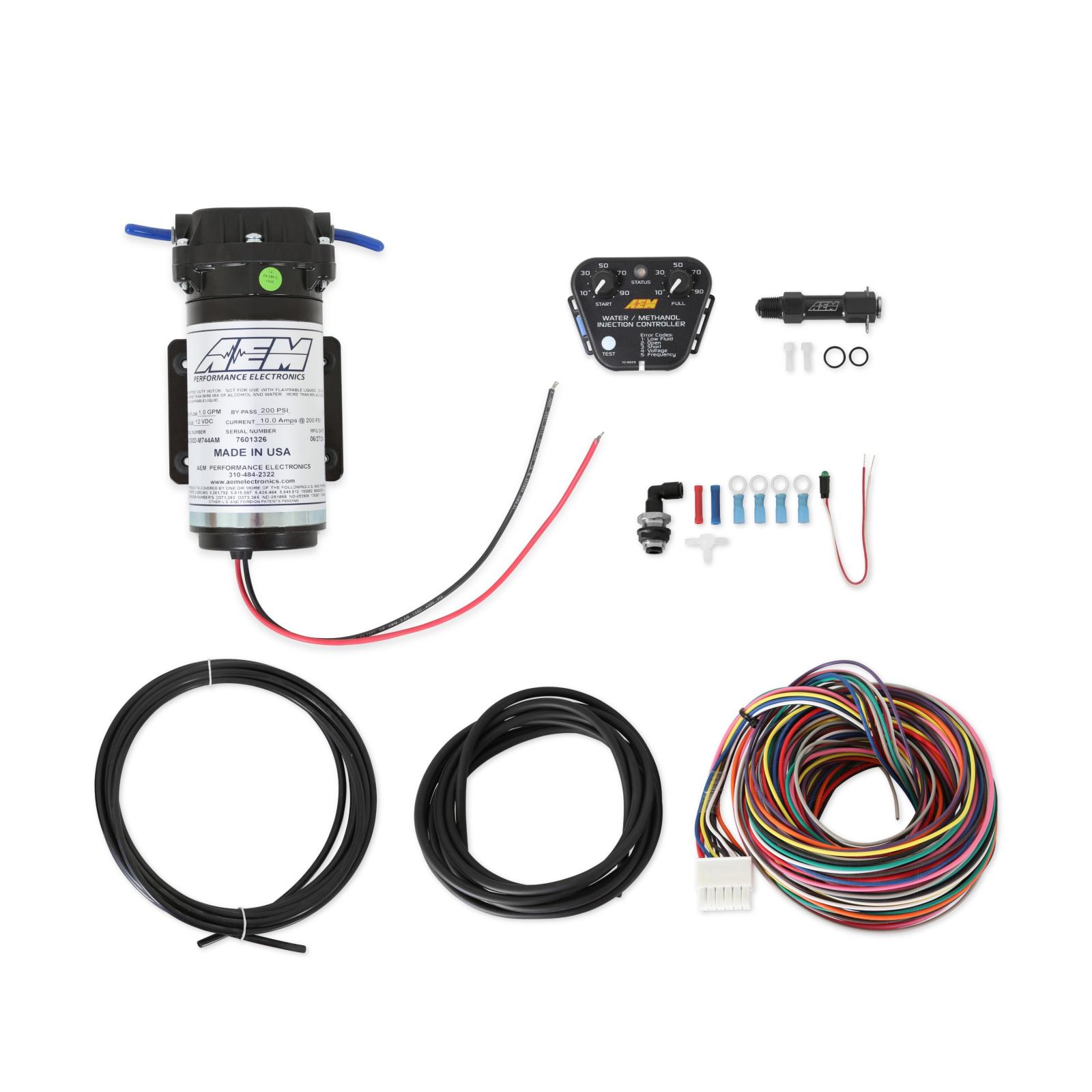

• Terminated harness features positive lock connector with integrated pump ground circuit and additional wire for optional on/off flow solenoid
• Includes Boost Safe readiness failsafe system
• One machined billet injector with integral check valve to prevent unintended flow

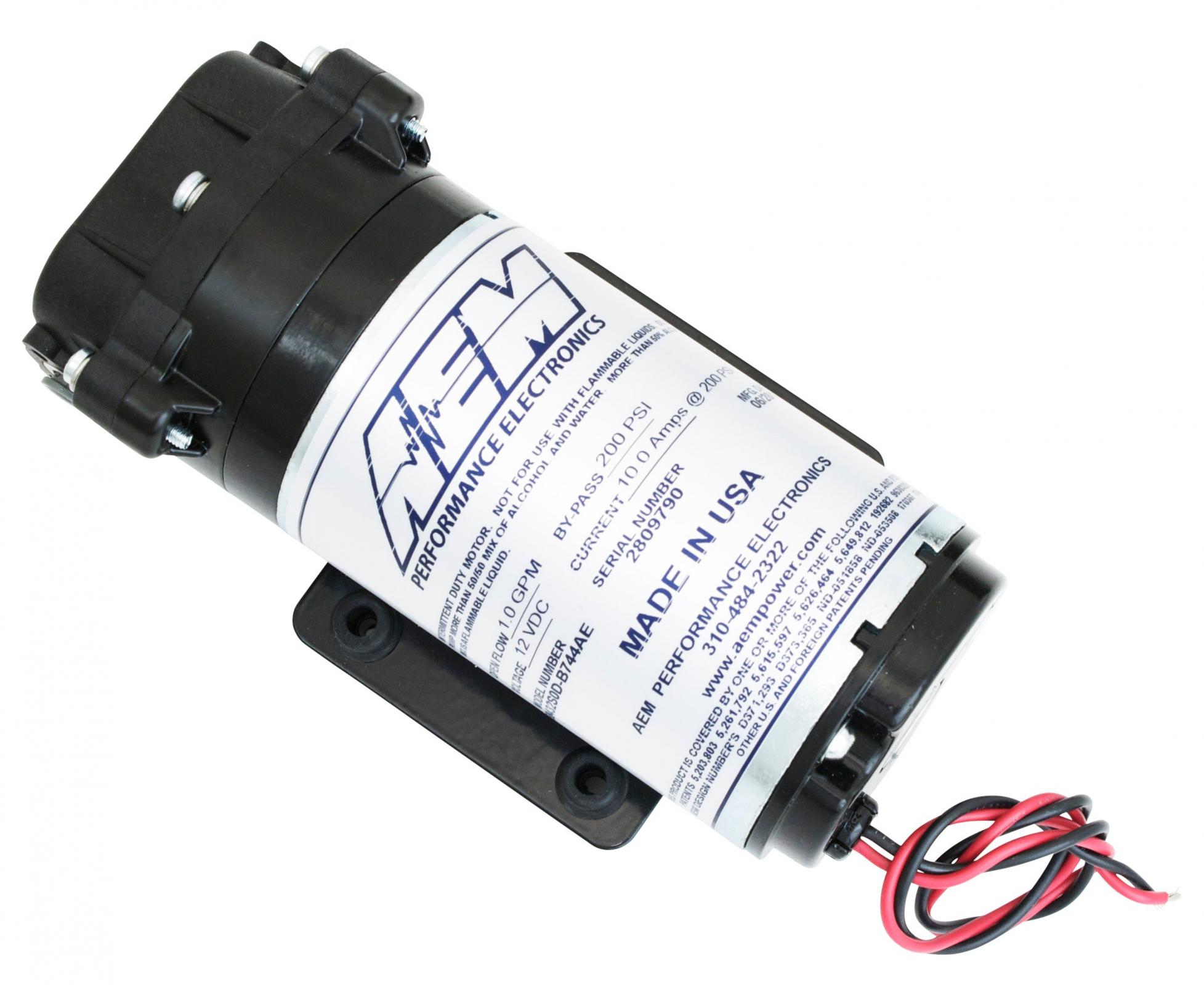

• Recirculation-style pump with integral fittings for quiet operation
• LED dash light for system status and low fluid warning
• 20 ft. of high-pressure Nylon injection tubing

Details:

• Brand: AEM
• Warranty: Manufacturer's 1 Year Warranty
