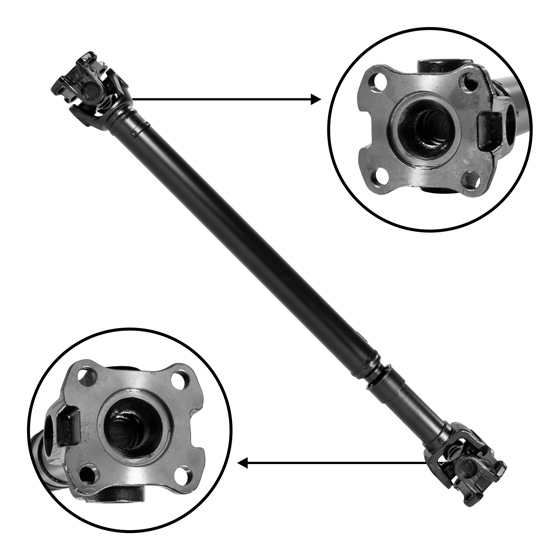

97-99 Ford F250 Front OE Driveshaft Assembly ZDS9544 USA Standard
SKU
ZDS9544-FDHD
List price
$624.89
Price
$624.89

    1997-1999 Ford F250 Front OE Driveshaft Assembly - ZDS9544 USA Standard. Replacement driveshafts from USA Standard Gear provide a reliable and affordable solution when looking to replace a worn or broken driveline. Each shaft is Made in America and manufactured to strict tolerances to ensure you receive a product that is precision balanced with minimal runout.

    Backed by a limited lifetime warranty, you can trust in USA Standard driveshafts to get your car, van, truck or SUV back in action. Our product range covers domestic and select foreign makes with over 600 fitments from classic rides to today's most popular models.
    Details:

    • Driveshaft - Front
    • 21 inch long from weld to weld
    • Fits 1997-1999 Ford F250 front with 5.4L engine and 139 inch wheelbase. Under 8500lb GVW
    • Fits models with 5.4L engine and 139 inch wheelbase. Under 8500lb GVW
    • Made in the USA from Astm A513 DOM tubing
    • All new OEM quality driveline ready to install
    Features and Benefits:
    • Overall compressed length is 34 1/2 inch. long from flange to flange
    • New universal joints, slip yokes, shafts and components ensure a long life
    • All units are dynamically balanced at 3,000+ RPMs for vibration-free driving
    • USA Standard Perfect Fit drive shafts are guaranteed for proper fitment and easy installation
    • USA Standard Driveshafts are strengthened over common OE shafts to prevent OE failure
    • Slip yokes & u-joints are lubricated with high temperature grease
    • Brand new and fully assembled for simple out-of-the-box replacement
    Details:
    • AAP_UDA_4: 60
    Fitment Notes:
    • Overall compressed length is 34 1/2 inch. long from flange to flange
    • 4 bolt flange on both ends
    Application Summary:

    1997-2005 Ford Expedition (Front) (Liter: 5.4 & Engine(ci): 330 & Cylinder: 8 & Block: V & Transmission Control Type: Automatic & Drive: 4WD / Note: Overall compressed length is 34 1/2 inch. long from flange to flange

    • 4 bolt flange on both ends)
    • 1997-2005 Ford F-150 (Front) (Liter: 5.4 & Engine(ci): 330 & Cylinder: 8 & Block: V & Bore(in): 3.55 & Bore(mm): 90.2 & Stroke(in): 4.17 & Stroke(mm): 105.7 & Transmission Code: 4R100 & Transmission Control Type: Automatic & Drive: 4WD / Note: Overall compressed length is 34 1/2 inch. long from flange to flange
    • 4 bolt flange on both ends)
    • 1997-1999 Ford F-250 (Front) (Liter: 5.4 & Engine(ci): 330 & Cylinder: 8 & Block: V & Bore(in): 3.55 & Bore(mm): 90.2 & Stroke(in): 4.17 & Stroke(mm): 105.7 & Transmission Control Type: Automatic / Note: Overall compressed length is 34 1/2 inch. long from flange to flange
    • 4 bolt flange on both ends)
    • 2002 Lincoln Blackwood (Front) (Liter: 5.4 & Engine(ci): 330 & Cylinder: 8 & Block: V & Bore(in): 3.55 & Bore(mm): 90.2 & Stroke(in): 4.17 & Stroke(mm): 105.7 & Transmission Control Type: Automatic / Note: Overall compressed length is 34 1/2 inch. long from flange to flange
    • 4 bolt flange on both ends)
    • 1998-2005 Lincoln Navigator (Front) (Liter: 5.4 & Engine(ci): 330 & Cylinder: 8 & Block: V & Bore(in): 3.55 & Bore(mm): 90.2 & Stroke(in): 4.17 & Stroke(mm): 105.7 & Transmission Control Type: Automatic / Note: Overall compressed length is 34 1/2 inch. long from flange to flange
    • 4 bolt flange on both ends)
    Vehicle Fitment
    1997-2003 Ford F-150
    1997-1999 Ford F-250
    1997-2005 Ford Expedition
    1998-2005 Lincoln Navigator
    2002 Lincoln Blackwood
    2005 Ford F-150
    Installation Instructions
    Brand
    USA Standard Gear
    Category
    Drivetrain & Differentials
    Drive Shaft
    Drive Shaft Assembly
    Material
    ASTM A513 DOM Tubing
    Specs
    Country of Origin: CN
    Sold As: Each
    Position: Front
    UPC: 883584444770
    Availability: Available
    Universal: No
    Drive: 4WD
    Shaft Size: 21 Inch
    Assembly Rquired: No
    Wheel Base Length: 139 Inch
    Balanced: Yes
    Vehicle Type
    Truck/SUV
    Core Charge
    $0.00
    Engine
    5.4 Liter
