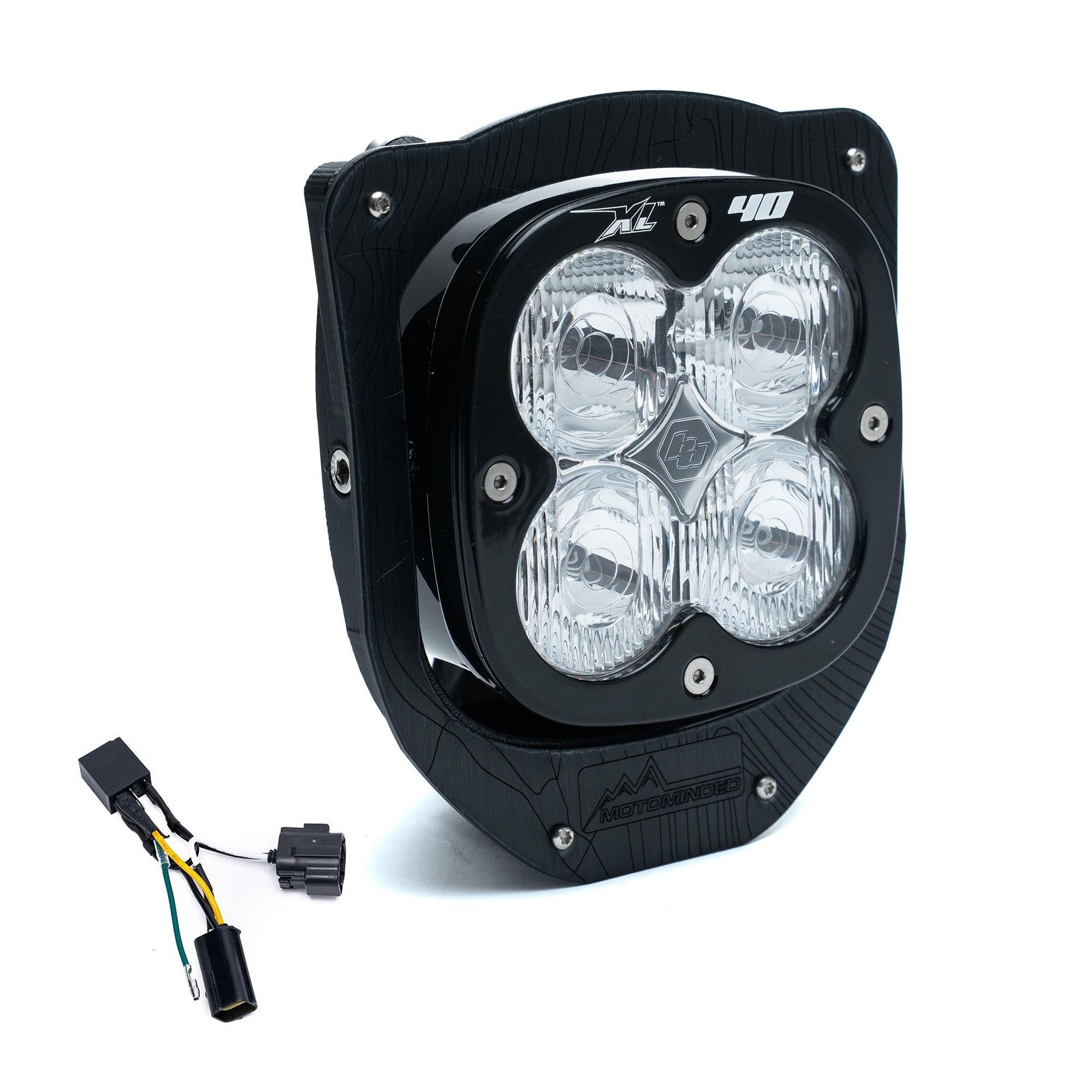

The Baja Designs XL40 (D/C) LED Headlight Kit with Hi/Low Harness for Husqvarna FE-S motorcycles is an all-new, moto-specific LED headlight that delivers outstanding performance for trail riders, Dual Sport enthusiasts, and desert riders who need reliable visibility when daylight turns to night. Derived from the powerhouse XL80, the XL40 brings the same trail-proven pedigree to a wider range of bikes, outputting 5,224 lumens of usable illumination.

With the included Hi/Low harness, riders can reduce output by 25 Degree in low beam mode, producing 1,434 lumens. Engineered for dirt bikes with lower output OEM stators, the XL40 draws only 43.5W-making it the ideal high-performance lighting upgrade for riders who previously lacked a compatible premium option.

Paired with our signature XL Trail Lens, the XL40 delivers both vertical and horizontal beam coverage with excellent near-field and peripheral visibility. Designed for tight, technical singletrack, the Trail Lens redistributes center beam intensity to remove harsh hot spots and improve clarity through elevation changes, vertical transitions, and sharp corners.

The result is a smooth, evenly distributed field of light that boosts confidence in demanding terrain. The XL40 LED Headlight Kit replaces the OEM unit and includes an in-line Hi/Low harness and Motominded mount for easy installation.

Each kit is backed by our 30 day satisfaction guarantee and Lifetime Limited Warranty, ensuring complete peace of mind on every ride.

Kit Includes:

• (1x) XL40 Trail Lens Clear w/ 2024+ OEM Connector
• (1x) Hi/Low Harness
• (1x) Motominded XL Bracket
• All Necessary Mounting Hardware

XL40 Specifications (per light):

• Lumens: 5,224 (Hi)/ 1,435 (Low)
• Watts/Amps: 43.5W/3.4A at 12.8V
• Modes: high beam, dimming feature (25 Degree brightness)

XL40 ELS Score:

• XL40, Trail lens, high beam: 92 degree /5.9/226'/5224
• XL40 Trail lens, low beam: 74 degree /5.9/119'/1435

The Baja Designs Advantage

• Satisfaction Guarantee 30-Day Money Back Guarantee
• Limited Lifetime Warranty Complete Purchase Protection
• uService Replaceable Lenses And Optics
• ClearView All The Light, Right Where You Need It
• MoistureBlock Waterproof, Rain Proof, Submersible
• CopperDrive Safely Driving LEDs at 100 Percent
• 5000K Daylight Less Driver Fatigue, Natural Color

• Specifications:
  • Product Type: XL40
  • Overvoltage Protection: Built-In
  • Mounting Hardware Included: Yes
  • Lighting Type: Forward Projecting
  • Lighting Technology: LED
  • Lighting Quantity: 4
  • Lighting Modes: Beam
  • Light Quantity: 1
  • Lens Material: Hardcoated Polycarbonate
  • Lens Color: Clear
  • Mounting Hardware Material: Stainless Steel
  • Universal or Specific: Universal
  • Wiring Harness Included: Yes
  • Wattage (W): 43.5
  • Housing Material: Powder Coated Cast Aluminum
  • Housing Color: Black
  • Description: Trail; Clear
  • Brightness (Lumens): 5,224 (Hi) / 1,435 (Low)
  • Bezel Material: Powder Coated Cast Aluminum
  • Beam Pattern: Trail
  • Average Rated Life (hr.): 49930
  • Amperage Rating (A): 3.4
  • Effective Lighting Score (ELS): High: 92 degree /5.9/226'/5224; Low; 74 degree /5.9/119'/1435

• Standards & Compliance:
  • Standards/Compliance (Water Resistance): IP69K (Waterproof up to 9ft & Pressure Washable)
  • Standards/Compliance (Impact Resistance): IK10 Compliant (Mechanical Impact Testing)
  • Standards/Compliance (Durability): Exceeds MIL-STD810G (Mil-Spec Testing)

• Dimensions:
  • Weight (lbs.): 2.45
  • Length (in.): 4.43
  • Height (in.): 4.43
  • Depth (in.): 3.65
